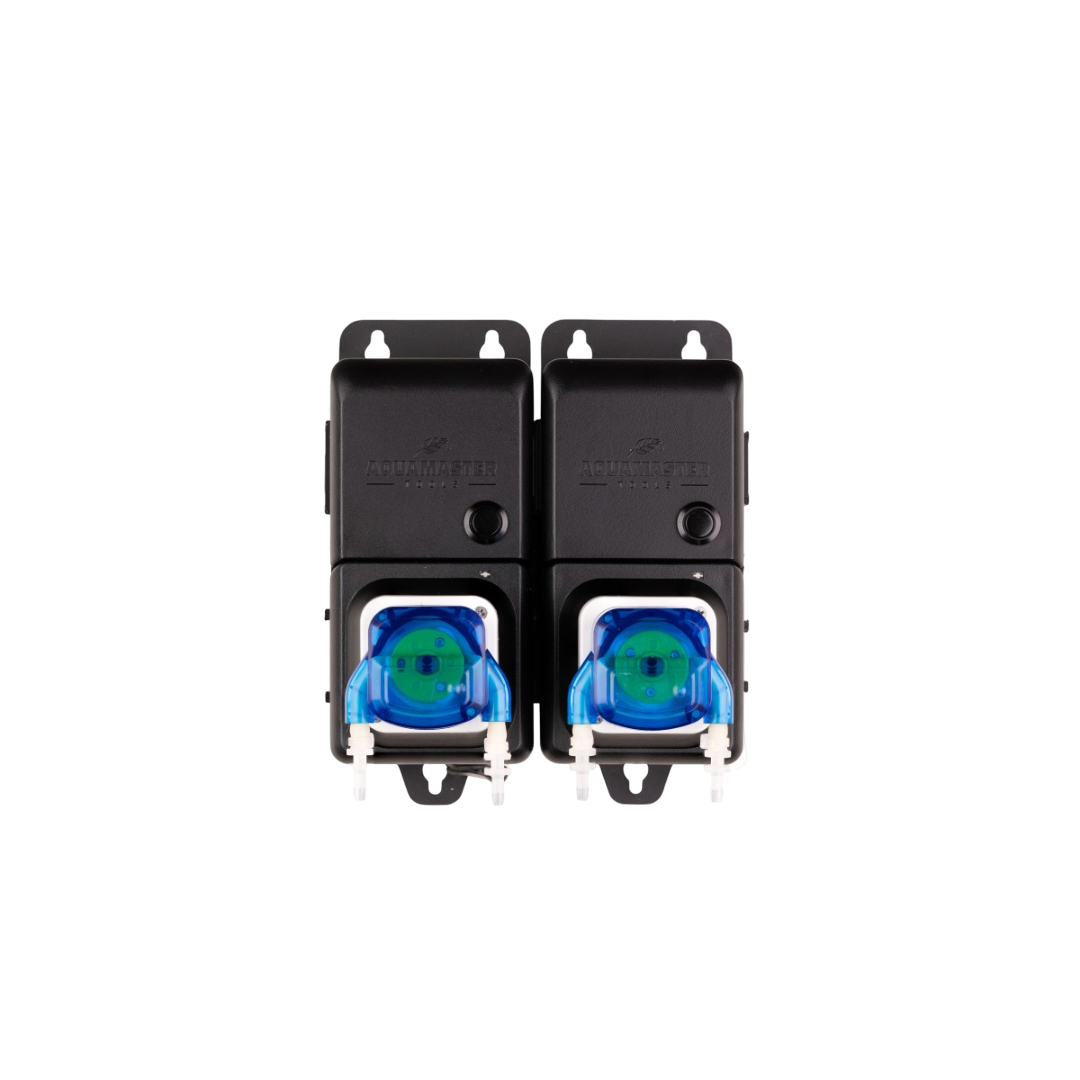

C20 Pump Unit 2x Peristaltic Nutrient Dosing

Unlock Your Pot-tential with C20 Pump Unit 2x Peristaltic Nutrient Dosing

Precise, automated nutrient delivery is crucial in South African hydroponics, fertigation and recirculating systems — manual mixing during heatwaves, load-shedding or busy cycles often leads to inconsistent EC, nutrient burn or uneven plant performance. The C20 Pump Unit 2x is the compact, dual-channel peristaltic powerhouse: two independent pumps each delivering 1.5 ml per second for fast, reliable dosing of two separate nutrient lines (EC only; not for pH). Connect directly to the C800 Pro controller’s right UTP port (recognized as Pump 1 & Pump 2) or extend a C30 (as Pump 4 & Pump 5) for modular scalability up to 5 EC pumps total per system. Side-rail mounting allows clean stacking with C10 or C30 units, while individual manual priming buttons simplify tubing setup, filling or maintenance without mess. Quiet operation (<60 dB), universal power compatibility (85–260 V) and durable build suit demanding grow environments. Perfect for small tents, commercial greenhouses or home setups — maintain target EC effortlessly, reduce labour and prevent costly swings. Sustainable precision dosing that protects your crop investment and maximises quality harvests.

Key Features

• Dual independent peristaltic channels – precise 1.5 ml/s dosing for two nutrient lines
• Modular controller compatibility – works with C800 Pro (Pump 1 & 2) or C30 extension (Pump 4 & 5)
• Individual manual priming buttons – easy tubing fill, empty or maintenance per pump
• Side-rail mounting & UTP input – quick, secure stacking & connection
• Quiet & durable operation – <60 dB, 1000-hour tube life, 800-hour motor life
• Universal power adapter – reliable in SA’s variable voltage conditions

Technical Specifications

• Flow Rate: 90 ml per 60 seconds (1.5 ml/s per pump, dependent on liquid temp/viscosity)
• Operating Temperature: 5 °C – 50 °C (41 °F – 122 °F)
• Noise Level: <60 dB
• Power Supply: AC 85–260 V, 50–60 Hz (international plugs)
• Power Consumption: 6 W
• Rated Voltage: 12 V
• Peristaltic Tube Lifetime: 1000 hours
• Motor Lifetime: 800 hours
• Dimensions: 129 × 159 × 100 mm
• Weight: 472 g
• Included: 2 × 3 m tubing, 150 cm UTP cable, international power adapter
