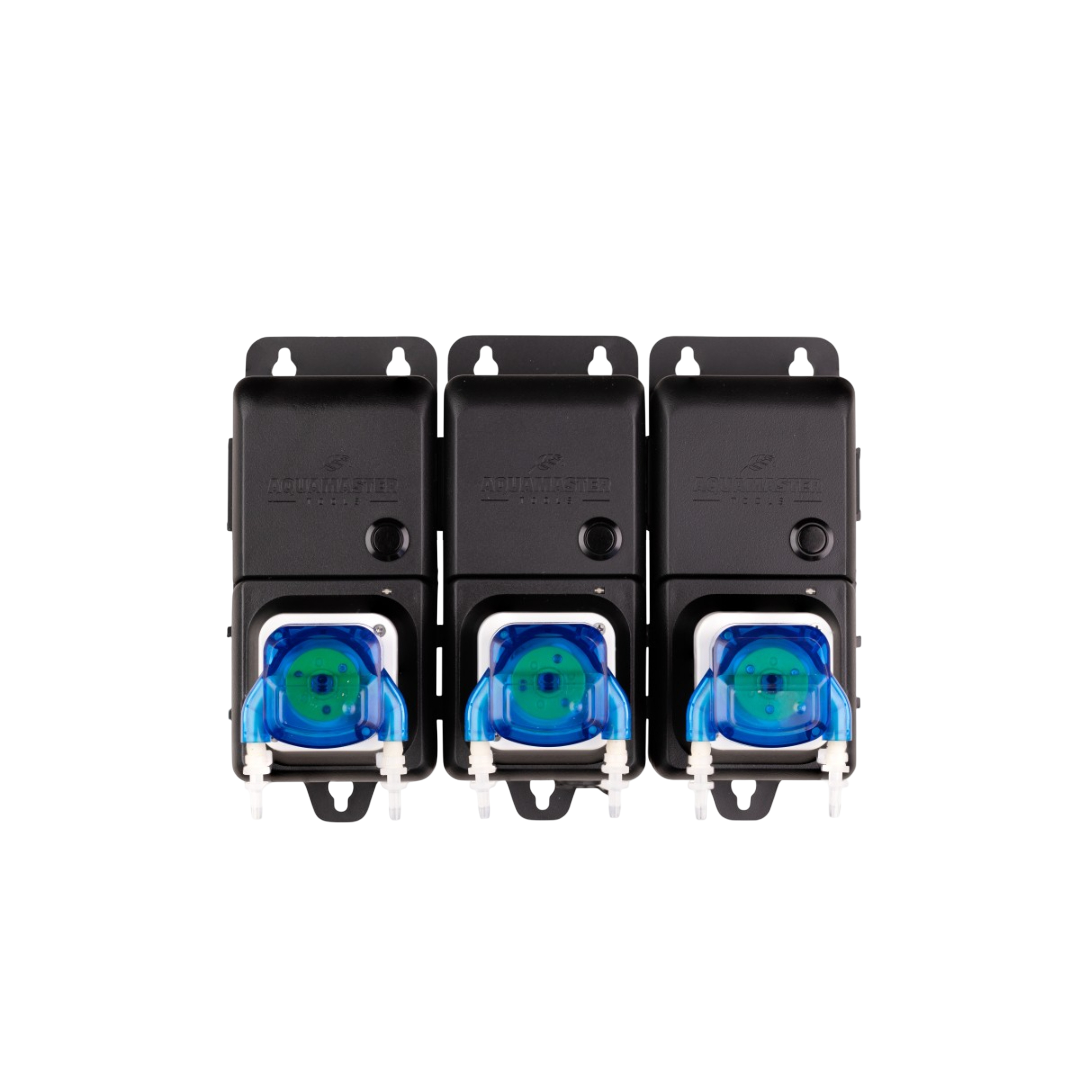

C30 Pump Unit 3x Peristaltic Nutrient Dosing

Unlock Your Pot-tential with C30 Pump Unit 3x Peristaltic Nutrient Dosing

Automated, multi-line nutrient delivery is essential for South African hydroponic, fertigation and recirculating systems — manual mixing during heat spikes, load-shedding or peak demand often causes EC fluctuations, nutrient burn or uneven plant performance. The C30 Pump Unit 3x is the compact, triple-channel peristaltic solution: three independent pumps each delivering 1.5 ml per second for fast, accurate dosing of three separate nutrient lines (EC only; not for pH). Connect directly to the C800 Pro controller’s right UTP port (recognized as Pump 1, 2 & 3) or extend via a C10/C20 for up to 5 EC pumps total per system. Side-rail mounting allows clean stacking with other C-series units, while individual manual priming buttons simplify tubing setup, filling or maintenance without mess. Quiet operation (<60 dB), universal power compatibility (85–260 V) and durable build suit demanding grow environments. Perfect for small tents, commercial greenhouses or home setups — maintain target EC effortlessly across multiple lines, reduce labour and prevent costly swings. Sustainable precision dosing that protects your crop investment and maximises quality harvests.

Key Features

• Three independent peristaltic channels – precise 1.5 ml/s dosing for three nutrient lines
• Modular controller compatibility – works with C800 Pro (Pump 1–3) or C10/C20 extension (up to Pump 5)
• Individual manual priming buttons – easy tubing fill, empty or maintenance per pump
• Side-rail mounting & UTP ports – quick, secure stacking & connection
• Quiet & durable operation – <60 dB, 1000-hour tube life, 800-hour motor life
• Universal power adapter – reliable in SA’s variable voltage conditions

Technical Specifications

• Flow Rate: 90 ml per 60 seconds (1.5 ml/s per pump, dependent on liquid temp/viscosity)
• Operating Temperature: 5 °C – 50 °C (41 °F – 122 °F)
• Noise Level: <60 dB
• Power Supply: AC 85–260 V, 50–60 Hz (international plugs)
• Power Consumption: 6 W
• Rated Voltage: 12 V
• Peristaltic Tube Lifetime: 1000 hours
• Motor Lifetime: 800 hours
• Dimensions: 197 × 159 × 100 mm
• Weight: 706 g
• Included: 3 × 3 m tubing, 150 cm UTP cable, 50 cm UTP cable, international power adapter
