RAM Inline Duct Fans

RAM Inline Duct Fans are A high-pressure, low-noise inline duct fan engineered for reliable ventilation. The patented Fast-Flow™ anti‑turbulence fin smooths incoming air for more efficient, direct airflow and reduced noise. Supplied with a mounting bracket and IEC socket for quick installation.

Key features

• Fast-Flow™ anti-turbulence fin for smoother, higher-pressure airflow
• Quiet operation optimized for ducted systems
• Robust PA66 impeller for long service life
• Supplied with mounting bracket and IEC socket
• Single-speed for simple, dependable performance
• IP44 protection; suitable for typical indoor environments

Technical specs

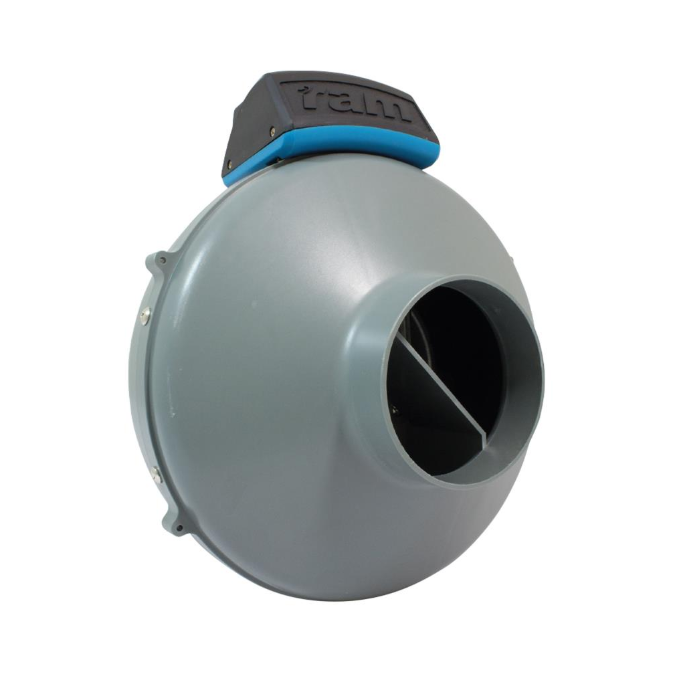

• 100 mm — Operating temp: -20°C–50°C; Power: 69 W; RPM: 2550; Airflow: 277 m³/h

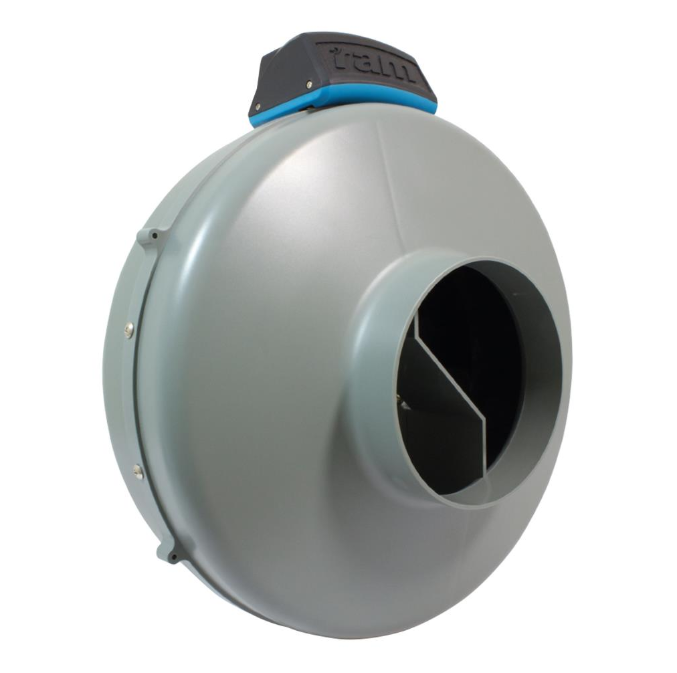

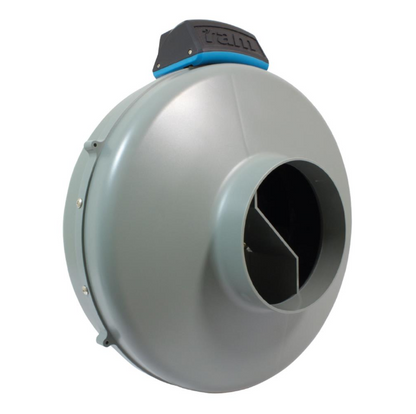

• 150 mm — Operating temp: -20°C–50°C; Power: 96 W; RPM: 2210; Airflow: 580 m³/h

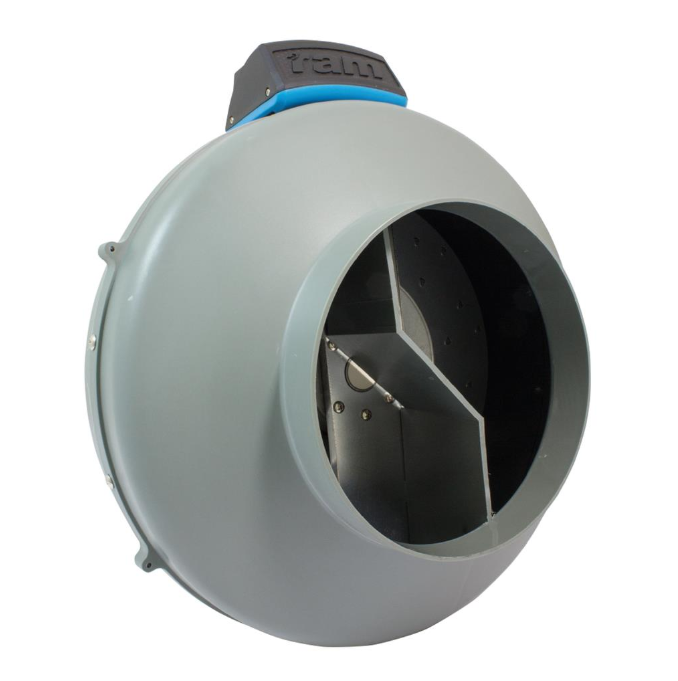

• 200 mm — Operating temp: -20°C–50°C; Power: 166 W; RPM: 2280; Airflow: 998 m³/h

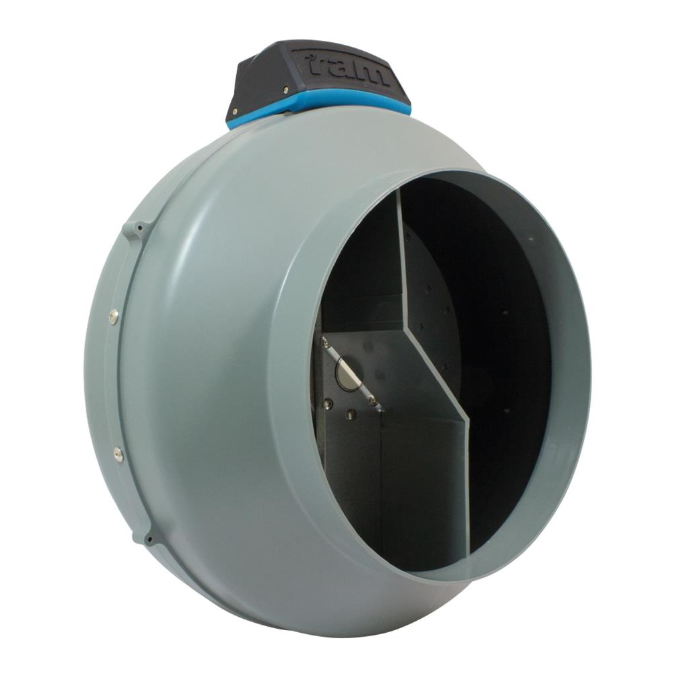

• 250 mm — Operating temp: -20°C–50°C; Power: 174 W; RPM: 2350; Airflow: 1088 m³/h
