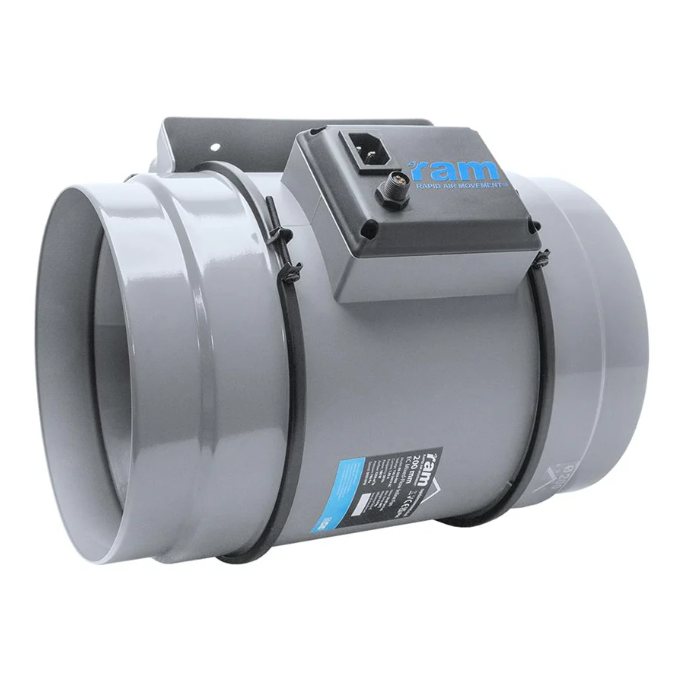

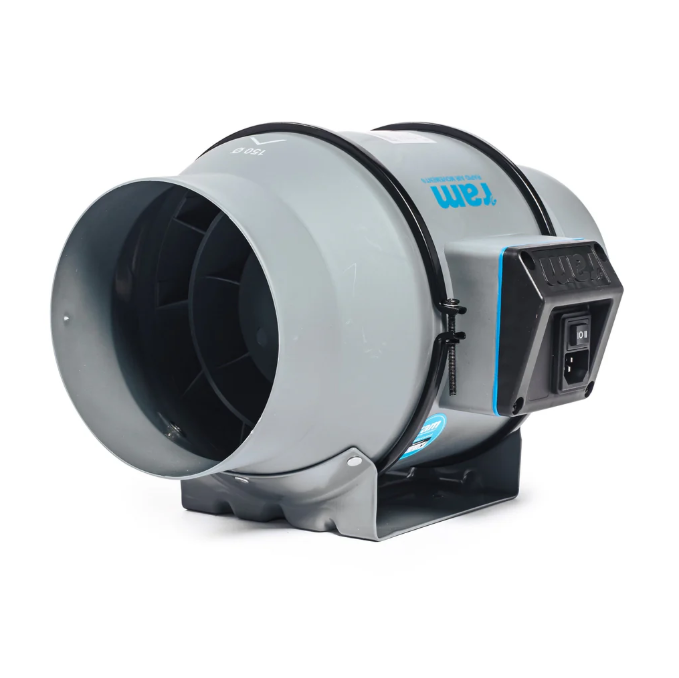

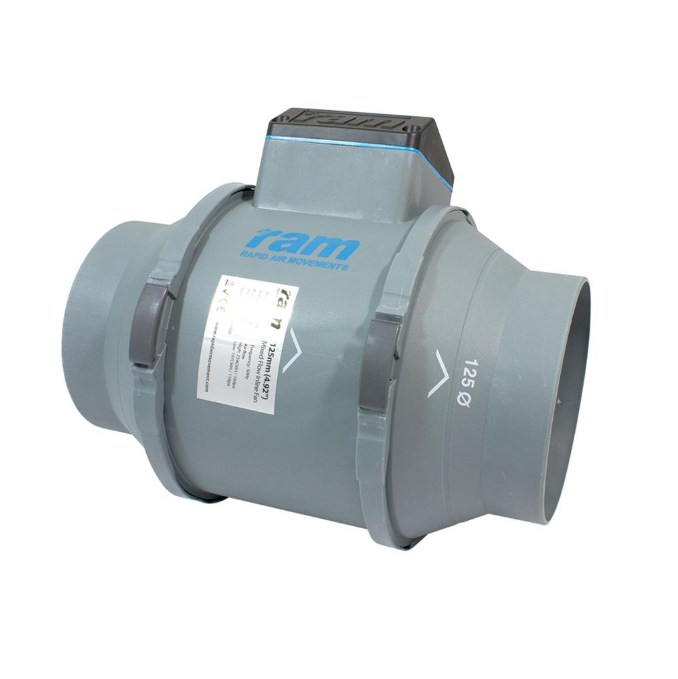

RAM Mixed Flow Inline fans

RAM Mixed Flow Inline fans are A two‑speed mixed‑flow inline fan engineered for high‑pressure, low‑noise ventilation. Features an IEC socket and integral mounting bracket for fast installation, plus Fast‑Clean release for easy removal and maintenance.

Key features

• Two‑speed operation for flexible airflow control
• Fast‑Clean quick‑release system for easy cleaning and service
• Quiet, high‑pressure mixed‑flow design ideal for ducted systems
• Durable ABS impeller and IP44 protection
• Supplied with mounting bracket and IEC socket

Technical specs

• 100 mm — Operating temp: -20°C–50°C; Power: 69 W; RPM: 2550; Airflow: 277 m³/h
• 150 mm — Operating temp: -20°C–50°C; Power: 96 W; RPM: 2210; Airflow: 580 m³/h
• 200 mm — Operating temp: -20°C–50°C; Power: 166 W; RPM: 2280; Airflow: 998 m³/h
• 250 mm — Operating temp: -20°C–50°C; Power: 174 W; RPM: 2350; Airflow: 1088 m³/h
